AUTO TRAY FILLING MACHINE - SVM/W/ATFM/70

Auto Tray Filling Machine is highly recommended for biscuit and bakery industries to fill the tray as per the number of biscuits in pile format. This solution is best suitable for round or square biscuits with proper shapes. The machine is specially designed for filling of trays up to 2 to 4 cavities by hopper and auto selection system, to reduce the manpower. Servo system with PLC & HMI makes it user friendly with easy operations. The speed can be varied up to 70 trays per minute according to the size of trays.

Dimensional Drawings:

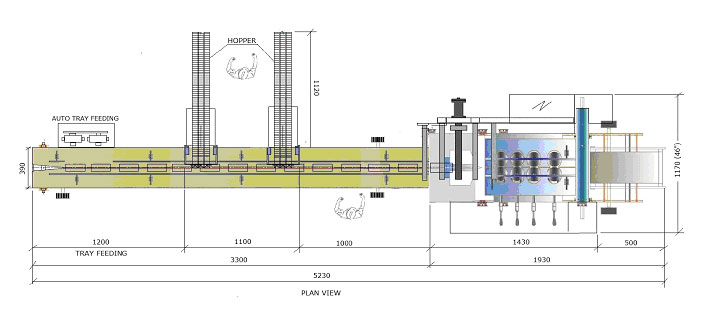

Auto Tray Filling Wrapping Machine Drawing

Machine Specifications and Technical parameters:

Electrical Data:

Power Supply	3 Phase, 5 KW	440 V With neutral
Main Motor & Paper Motor	3 phase 6 Lead	2 HP, 1440 rpm, 440 V, 50 Hz
Main VFD & Paper VFD	230 V, 2 HP	Input : Single Phase
		Output : 3 Phase

Jaw Heater	50 V, 275 W – 4 No (Check the actual wattage)
Dish Heater	50 V, 400 W – 4 No (Check the actual wattage)
Transformer	Primary - 2 Phase, 440 V, Secondary – 50 V, 30 A + 30 A

(Note:The electrical specifications are subject to change with our different types of models and functions of machines).

Technical Parameters & Specifications:

Product Size Range	40 mm (W) x 3 mm (thk) To 60 mm (W) x 8 mm (thk)
Tray Cavity	1 to 4 no
Type of Product	Should be stiff or hard and round or square in shape
Speed	70 Trays per Minute (depending upon the size & cavity of tray)
Feeding	Manual tray feeding in conveyor & Auto Tray Filling
Control	PLC controlled
Machine Dimension	5230 (L) x 1170 (W) x 1700 (Ht)
Weight	400 kg (Approx.)

(Note:The electrical specifications are subject to change with our different types of models and functions of machines).

Special Features:

PLC controlled with touch screen & password protection for the machine settings. Malfunction display through self-alarm with message.
Quick changeover for different size of products by adjusting the hand wheels (i.e. easy adjustment of width & height).
Auto tray denester.
Easy to set different cutoff lengths & stroke length by putting the desired value in HMI.
AC motor with Variable Frequency Drive and servo motor operated Pusher.
Highly sensitive tray sensors to reduce the wastages with no tray no filling features.
The Jaw Dwell position can adjust in running condition.
All touching parts are of SS 304.
Epoxy liquid painted structure with SS 304 safety guards and electric control panel (optional as per selection).
Overall durable, practical, low maintenance and affordable. Suitable for working long hours without breakdown and without need of constant supervision.

Auto Tray Filling Machine
