CROSS CONVEYOR FLOW WRAP - SVM/W/CCF/150

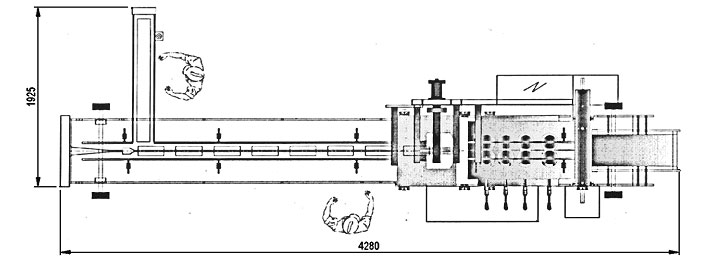

Cross Conveyor Flow Wrap Machine Drawing

Cross Conveyor Flow Wrap Machine is highly appreciate in biscuit and bakery industries for packaging of cream sandwiched biscuits (in On-edge position) and chocolate cake bars, soaps etc. Products are feed manually on cross conveyor which is then transferred to main feeding conveyor. The conveyor can be customized to belt or chain type as per products. The PLC controlled with touch screen panel make it user friendly and is easy to set parameters. The speed can be varied up to 80 packets per minute according to stack length.

This machine is best suitable for Cream Biscuits, Chocolate Bar, Chocolate Cakes, soaps etc.

Dimensional Drawings:

Machine Specifications and Technical parameters:

Electrical Data:

Power Supply	3 Phase, 3.5 KW	440 V With neutral
Main Motor & Paper Motor	3 phase/1 phase 6 Lead	2 HP, 1440 rpm, 440 V, 50 Hz
Main VFD & Paper VFD	230 V, 2 HP	Input : Single Phase
		Output : 3 Phase
